PDIC VCBA 01 - Vacuum Circuit Breaker Analyzer

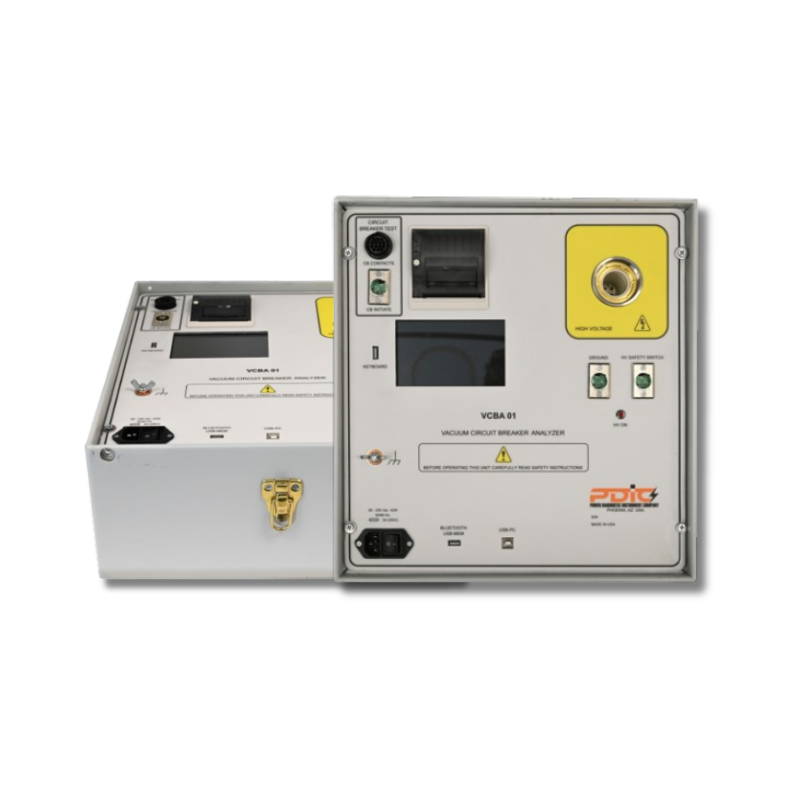

The Vacuum Circuit Breaker Analyzer VCBA 01 is Power Diagnostic Instrument Company’s state-of-the-art, field portable, light weight instrument designed for the comprehensive diagnostic testing of vacuum circuit breakers. The VCBA 01 can perform high voltage DC vacuum integrity tests on the circuit breaker main contacts.

The VCBA 01 applies a test voltage to the vacuum bottle arcing chamber for the time specified in the test settings. While the test voltage is applied to the vacuum circuit breaker arching chamber, the instrument monitors the leakage current to the ground. If the leakage current to the ground remains lower than the set limit, the instrument registers the test as successful. If the leakage cur-rent exceeds the set limit, the instrument shuts down and removes the test voltage from the arcing chamber and registers the test as a failed test.

• Comprehensive vacuum CB HV test and contact timing test
• 10-80 kV DC in 1 kV steps with 1.5% accuracy
• Settable leakage current 50-300 micro–A in 50 micro-A steps
• Accurate trip & close circuit breaker main contact timing test.
• Touch screen LCD screen for improved productivity
• Built-in 3″ thermal printer
• Enhanced safety features: audible and visual high voltage presence indicators, user-controlled safety switch
