Crown Triton Series Motor
+3

Crown Triton Series Motor

00072
Php0.00
In stock
1
Product Details

Crown Triton Series Motor - Severe Duty

  • Output Range 1 - 250 HP
  • Voltage 208 - 230/460, 460 and 575 V
  • Frequency 50 Hz, 60 Hz
  • Number of Poles 2, 4, 6
  • Degree of Protection IP55
  • Insulation Class F
  • Frame size 143 ~ 449T
  • Hazardous Area Classification Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups E, F & G (CSA certified/Group E : 326T and below)

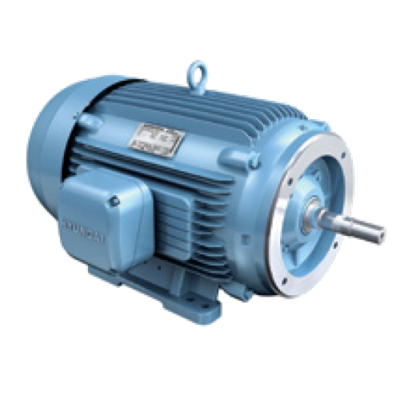

Crown Triton Series Motor - C-Face, D-Flange

  • Output Range 1 - 250 HP
  • Voltage 208 - 230/460, 460 and 575 V
  • Frequency 50 Hz, 60 Hz
  • Number of Poles 2, 4, 6
  • Degree of Protection IP55
  • Insulation Class F Frame size 143 ~ 449T
  • Hazardous Area Classification Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups E, F & G (CSA certified/Group E : 326T and below)

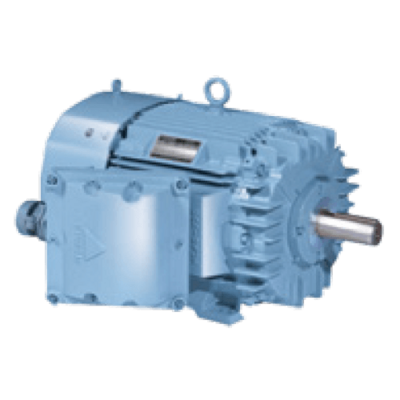

Crown Triton Series Motor - Explosion Proof

  • Output Range 1 - 250 HP
  • Voltage 208 - 230/460 V (1 - 125 HP) 460 V (150 - 250 HP)
  • Frequency 50 Hz, 60 Hz
  • Number of Poles 2, 4, 6
  • Degree of Protection IP54
  • Insulation Class F
  • Frame size 143 ~ 449T
  • Hazardous Area Classification Class 1, Division 1, Groups C and D (UL Certification)

Crown Triton Series Motor - JM/JP

  • Output Range 1 - 50 HP
  • Voltage 208 - 230/460 V
  • Frequency 50 Hz, 60 Hz
  • Number of Poles 2, 4
  • Degree of Protection IP55
  • Insulation Class F
  • Frame size 143 ~ 405T[G1], 143 ~ 326T[G2]
  • Hazardous Area Classification Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups E, F & G (CSA certified/Group E : 326T and below)

DOWNLOAD DATA SHEET
