Crown Triton Series Motor - Severe Duty Large Frame
+3

Crown Triton Series Motor - Severe Duty Large Frame

00078
Php0.00
In stock
1
Product Details

Crown Triton Series Motor - Severe Duty Large Frame - B3

  • Output Range 250 - 600 HP
  • Voltage 460 V
  • Frequency 50 Hz, 60 Hz
  • Number of Poles 2, 4, 6
  • Degree of Protection IP55
  • Insulation Class F, H
  • Frame size L449TS ~ 5812
  • Hazardous Area Classification Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups E, F & G (CSA certified/Group E : 326T and below)

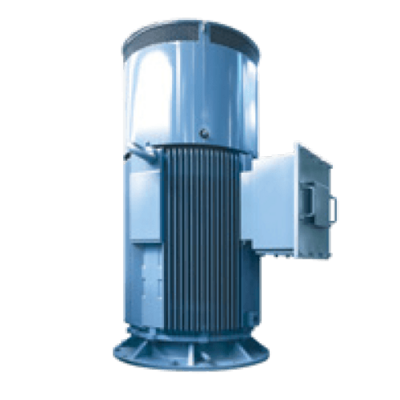

Crown Triton Series Motor - Severe Duty Large Frame - V1

  • Output Range 250 - 600 HP
  • Voltage 460 V
  • Frequency 50 Hz, 60 Hz
  • Number of Poles 2, 4, 6
  • Degree of Protection IP55
  • Insulation Class F, H
  • Frame size L449TS ~ 5812
  • Hazardous Area Classification Class I, Division 2, Groups A, B, C & D; Class II, Division 2, Groups E, F & G (CSA certified/Group E : 326T and below)

DOWNLOAD DATA SHEET
